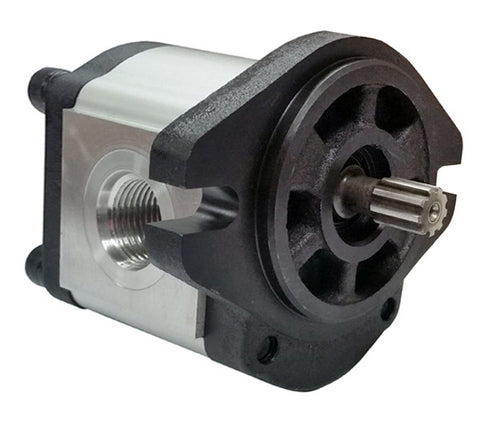

Dynamic brand high pressure hydraulic gear pump. The pump is constructed of an aluminum housing with cast iron flange and end plates.

Specifications:

• Displacement: .48 in³/rev (8 cm³/rev)
• Mounting Flange: 2-bolt, SAE "A"
• Shaft: 9-tooth Spline Shaft
• Rotation: Clockwise
• Ports:
• Inlet: SAE-12
• Outlet: SAE-10
• Speed:
• Rated: 2000 rpm
• Max: 3600 rpm
• Pressure:
• 3650 psi

Recommended Working Conditions:

• Filtration: 25 micron or better
• Oil Temperature: -12° to 175°F (-25° to 80°C)
• Oil Viscosity: 6 - 200 cSt
• Ambient Temperature: -8° to 130°F (-22° to 55°C)
• Inlet Pressure: 12 - 32 psi absolute
